Click here to learn how to use the Protection Turf
Step 1
Clean the surface of the SAM BalanceLab. Then place the double-sided adhesive tape on the sensor area.
Remove the protection film:
Step 2

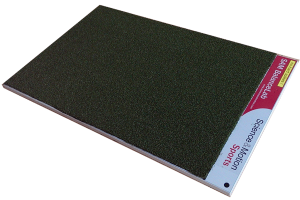

Roll out the protection turf on the SAM BalanceLab so the sensor area is completely covered.
Press on the turf so it is properly fixed to the surface.
Camera Model:
IDS UI-1220LE
752 x 480 @ 87FPS / 600 x 450 @ 100FPS
USB 2.0
Optics:
High Quality CS Mount Optics
Vario Zoom
Wide Angle (3 – 8mm)
USB Cable
USB Mini-B / USB-A premium quality cable
Length: 5m / 16.5 feet
Optional (not included in standard package):
USB 2 active extension cable
Length: 5m / 16.5 feet

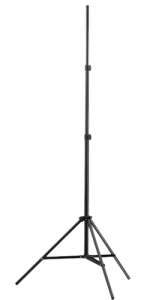

Extensible Camera Tripod incl. Ball head
Variable height from 100 to 210 cm (3 to 7 feet)

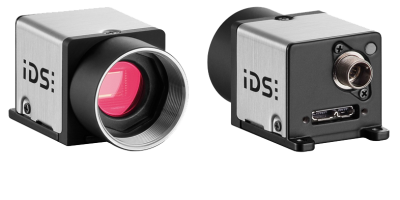

Camera Model:
IDS UI-3220CP
752 x 480 @ 100 FPS
USB 3.0
Optics:
High Quality C Mount Optics
Wide Angle Vario (4 – 12mm)
Focus / Iris manual control
(Tamron 12VM412ASIR or comparable)
USB Cable
USB 3.0 Type-A to Micro-B
Premium quality cable
Length: 5m / 16.5 feet
Optional (not included in standard package):
USB 3.0 active extension cable
Length: 5m / 16.5 feet
Extensible Camera Tripod incl. Ball head
Variable height from 100 to 210 cm (3 to 7 feet)
