SAM Balance Lab

BALANCE – THE INVISIBLE KEY TO SUCCESS



  • Windows 7/8/10 – 32/64 Bit
  • i5/i7 CPU, 8 GB RAM or better
  • Harddisk minimum 200 GB
  • USB2, USB3 or Ethernet camera
  • Ultra high resolution 2560 sensors (4 per inch)
  • Total size (w/l/d): 24” x 38” x 0,83”
  • Portable system, weight 12kg
  • USB connection
  • Audio impact detection
  • Support for industry cameras (IDS)
  • Launch monitor integration (Trackman / Flightscope / GC2)

Stop the guesswork & start to rely on facts

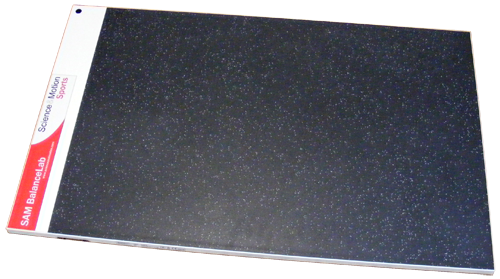

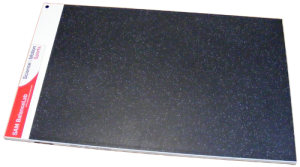

SAM BalanceLab is an ultra-high resolution pressure plate to evaluate balance and weight transfer during a golf swing. The pressure signals and synchronized video are recorded in parallel and then interactively analyzed in detail. Poor balance and an irregular weight shift are often responsible for swing flaws resulting in an unsatisfactory outcome of the shot.

The report capabilities of the system are similar to our proven SAM PuttLab system and give the user detailed data from each swing that can be viewed and printed.

Click here to open a PDF Report Example

Applications:

  • Teaching and playing professionals
  • Golf clubs
  • Indoor centers
  • Fitting centers
  • Golf stores
  • Manufacturers

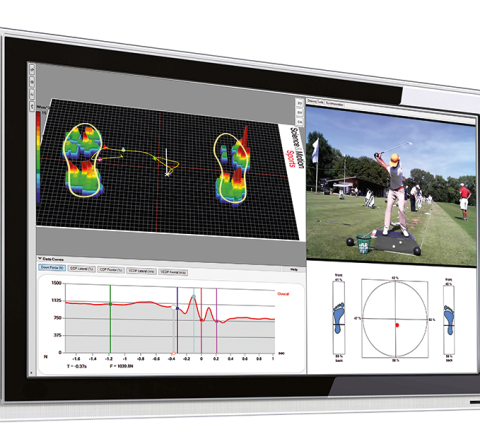

Swing replay screen (click image to zoom in):

1Web Body (COP) curve 2Web 1:1 synched video and drawing tools 3Web Toe/ heel balance for both feet & body balance (COP) 4Web Player downforce & markers for swing key positions 5Web Live pressure display (2D or 3D)

Main Features of SAM BalanceLab

  • Medical proven pressure plate technology (2560 sensors)
  • 2D/3D display of pressure distributions
  • Left/right foot and heel/toe balance analysis
  • Replay and graphical report modules
  • Center of pressure (COP) + weight transfer analysis
  • Synchronized video recording
  • Live feedback and training mode
  • Launch monitor integration

New Features of SAM BalanceLab 3.0

  • Automatic impact detection and recording
  • Innovative performance parameters
  • 1:1 camera frame synch with pressure data at 100 Hz

Click here to download the BalanceLab Product Brochure (PDF)

For more information or pricing inquiries please use our contact-form

How balance affects the swing

POOR BALANCE – A FREQUENT TRIGGER OF A MISS-HIT GOLF SHOT

Well balanced swing

On the lower image you can see a quite efficient weight shift of an US Tour player (Iron 5). Backswing and forward swing are in the same plane. At impact the COP is 72% at the front foot with an almost even heel/toe balance with 55%. The club head can freely accelerate through impact on the target line to create power and control.

COP at impact: 72% left, 55% front

(Click image to enlarge)

Weight too far towards toe

Insufficient weight shift and uneven balance in heel/toe direction are common flaws in poor golf shots. The lower picture shows the COP at impact with a lack of weight shift to the left with only 47% as well as a balance too much forward at the toes with 92%. Improper balance will reduce the power at impact and may e.g. result in an out to in swing plane, promoting a pull, slice or fade.

COP at impact: 47% left, 92% front

(Click image to enlarge)

What the experts say…

“SAM BALANCELAB HAS ALLOWED ME TO SEE THE INVISIBLE”

“The SAM BalanceLab has allowed me to see the invisible. Things that I would not be able to see on video or with the naked eye are now very apparent to me. An incredible piece of equipment to understand why people move the way they do. My only regret is I didn’t have it 25 years ago.”

MARTIN HALL, 2008 PGA American National Teacher of the Year
