+++ New software release: SAM PuttLab 6 +++

The SAM PuttLab 6 software takes putt analysis to the ultimate level

Click here for more information

Download a free demo version of SAM PuttLab 6 software:

SAM PuttLab

THE COMPLETE PUTTING SOLUTION

SAM PuttLab
  • Complete analysis of ALL relevant putting aspects
  • Specific training modules
  • New Report Builder: Customized Reports, 80+ Report tiles
  • Suitable for amateurs up to PGA Tour players
  • Over 2.000 satisfied customers worldwide
  • Professional putter fitting
  • Portable for indoor and outdoor use

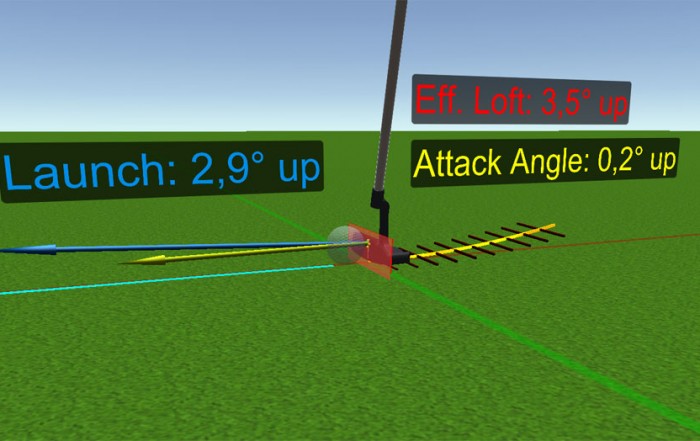

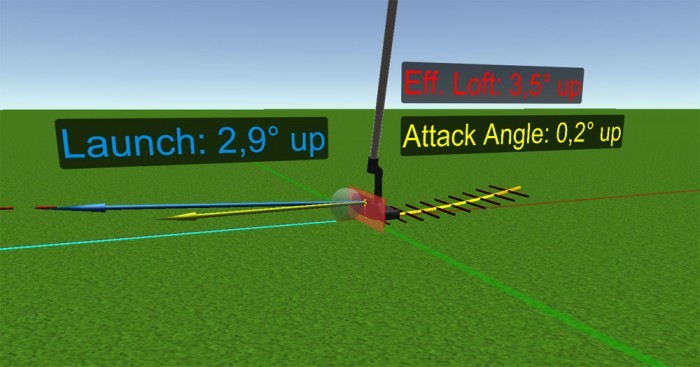

  • 3D-Putt replay module (3D-Putt details & videos)

Putt training in a new dimension

43 % of the golf shots are putts, however, putting is rarely trained systematically. Neuroscience tell us that efficient learning is all about accurate feedback. SAM PuttLab offers the most efficient technology to train for ascertainable success.

Testimonials of many Instructors and PGA Tour Pros attest the unique abilities of SAM PuttLab (See our Testimonials).

Most accurate tracking technology

SAM PuttLab is the worlds most accurate and comprehensive putt analysis and training system. Other technology lacks accuracy, which is so much needed for putting, or only measures few aspects of the putting stroke.

The PuttLab 6 software with app remote control and Report Builder module is now available (More info on PuttLab App).

Cutting edge putting analysis

DISCOVER YOUR INDIVIDUAL STRENGTHS & WEAKNESSES

Evaluation of 40+ putting parameter

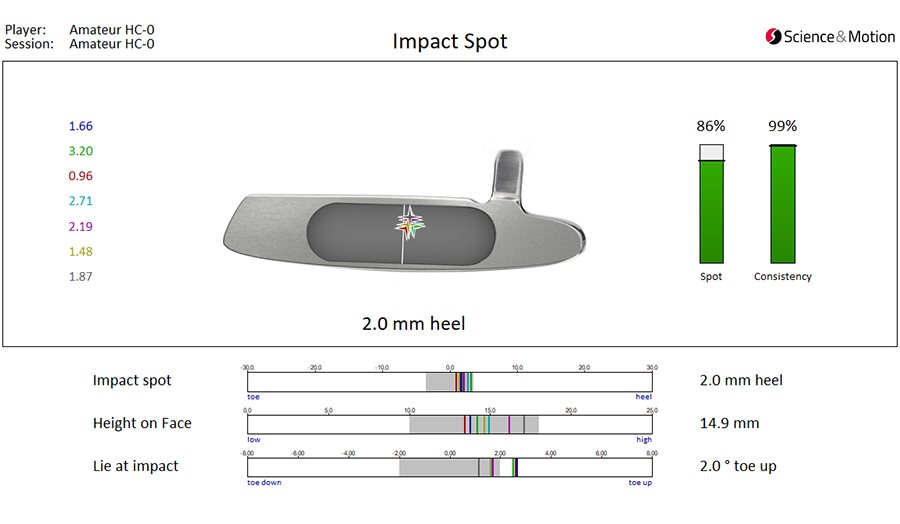

SAM PuttLab analyzes more than 40 important parameters of your putting stroke and displays the results in easy to understand graphic reports. Discover your individual strengths and weaknesses for a better and more efficient training.

Within seconds the system gives you an individual feedback on your putting strokes. The analysis reveals even the smallest details of your movements and allows you to develop improvements and training strategies.

SAM PuttLab utilizes ultrasound sensory analysis and therefore is far more precise than any other similar system on the market.

Click here to download PuttLab Product Brochure

Main features of analysis

  • Measurement of 40+ parameters (see “Parameter overview” below)
  • Auto-calibration
  • Feedback training

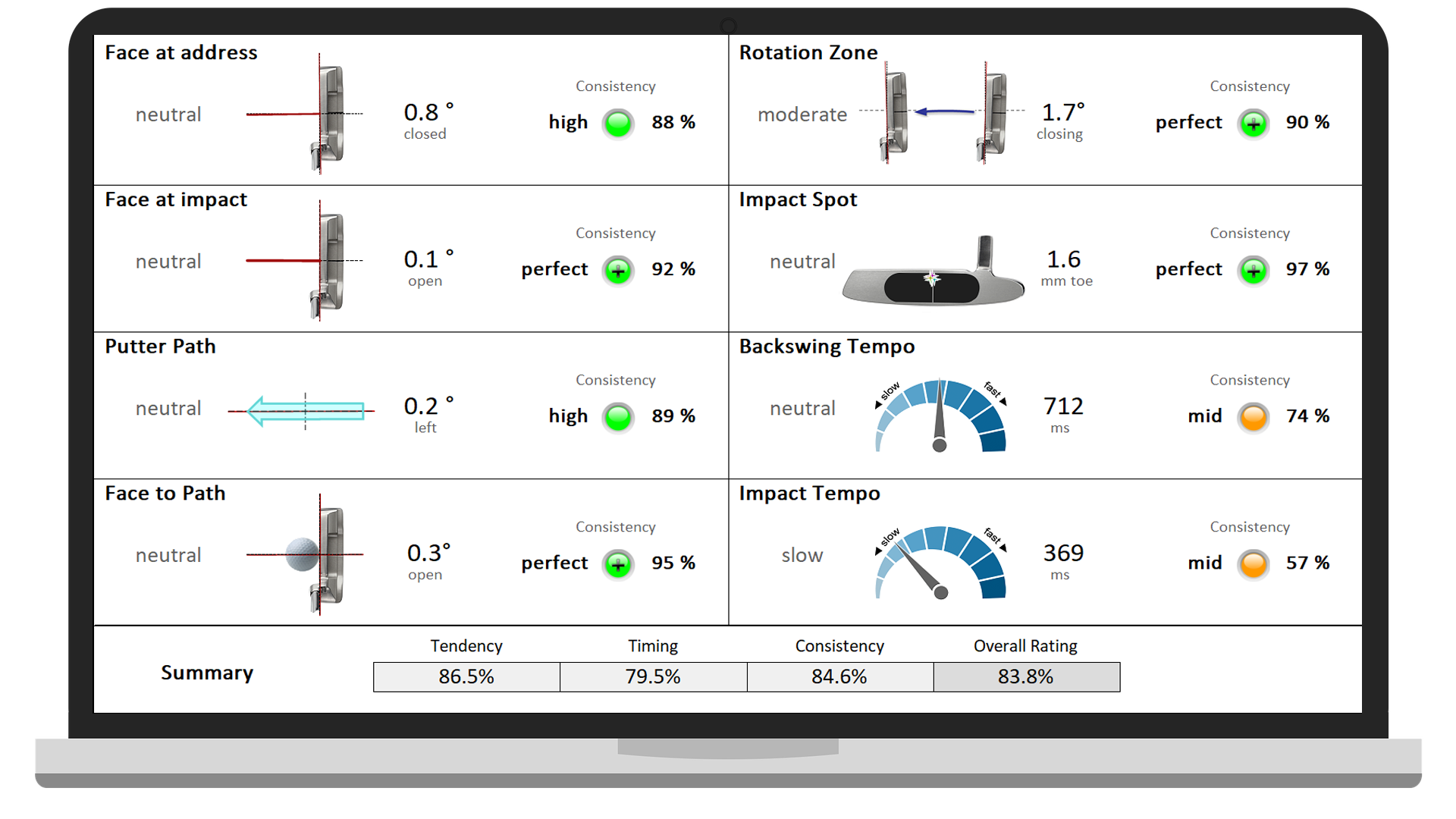

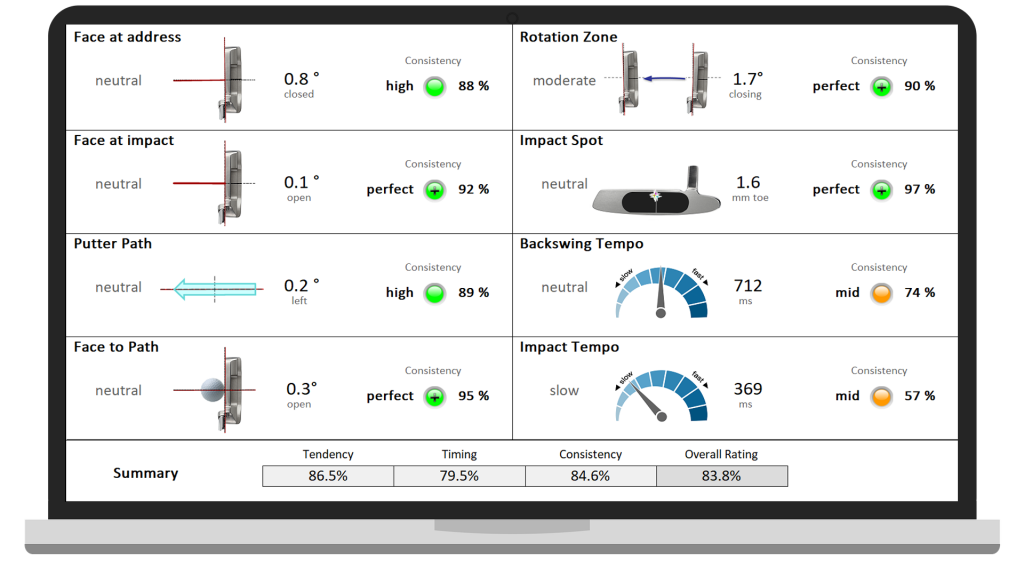

  • Graphic result reports
  • Performance profiles
  • Tour scoring
  • Interactive protocols
  • Gaming

Parameter overview (click to see full list)

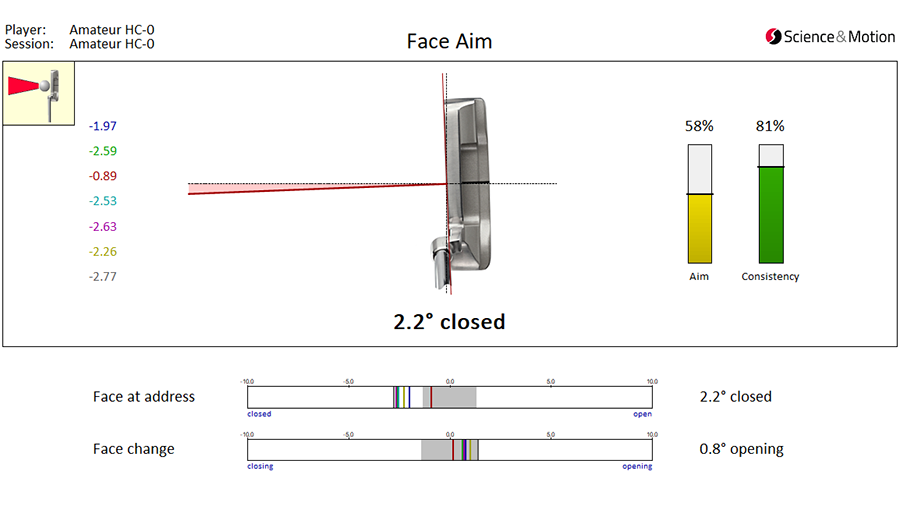

  • Face Aim
  • Face Change
  • Face Impact

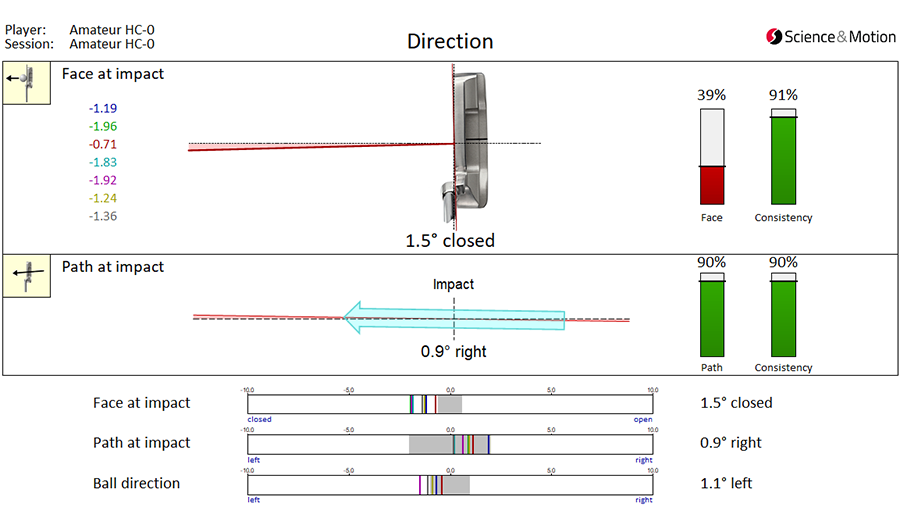

  • Ball Direction

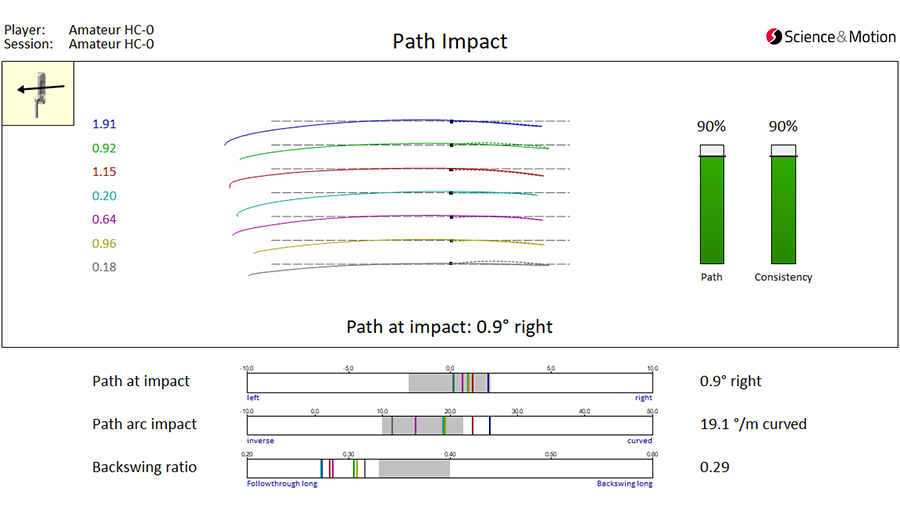

  • Path Direction

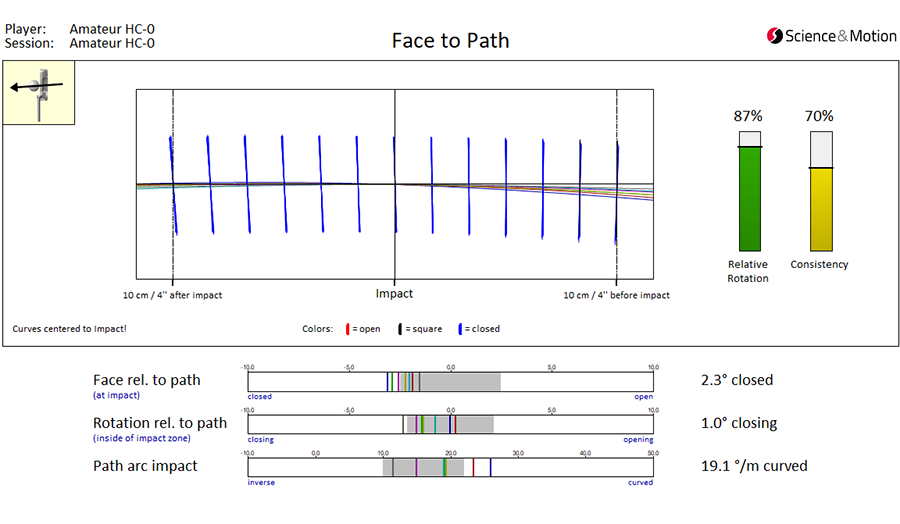

  • Face On Path
  • Spot Address
  • Spot Impact
  • Path Arc
  • Backswing Length
  • Forward Swing Length
  • Backswing Ratio
  • Lie Address
  • Lie Impact
  • Shaft Address
  • Shaft Impact
  • Loft Address
  • Loft Impact
  • Height Impact
  • Vertical Spot
  • Rise Impact

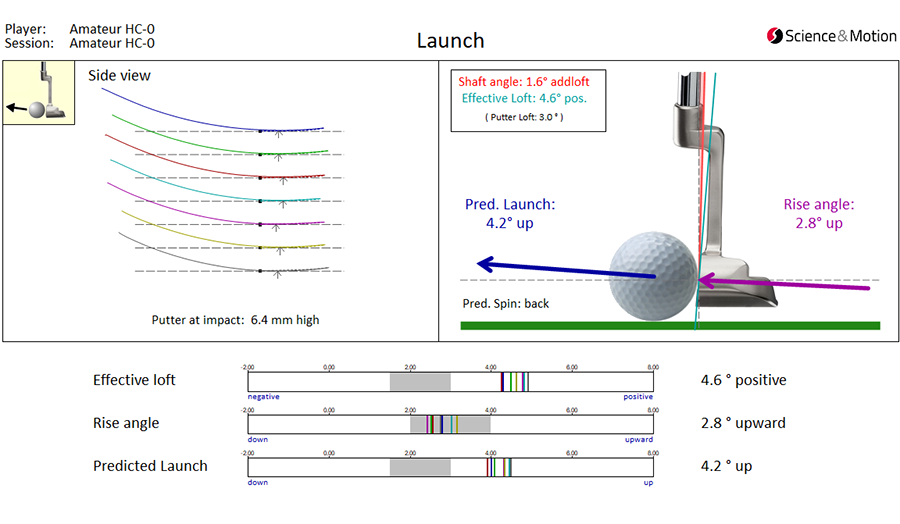

  • Launch Angle
  • Spin Loft
  • Face TOB
  • Face Finish

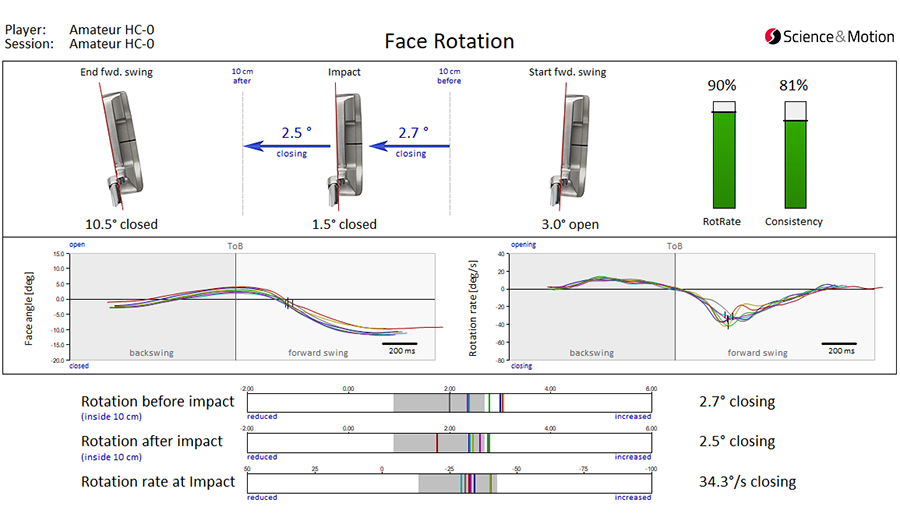

  • Backswing Rotation
  • Forward Swing Rotation
  • Rotation -10
  • Rotation +10
  • Abs Rotation Zone
  • Rotation Symmetry
  • Relative Rotation Zone
  • Rotation Rate
  • Yips Jerking

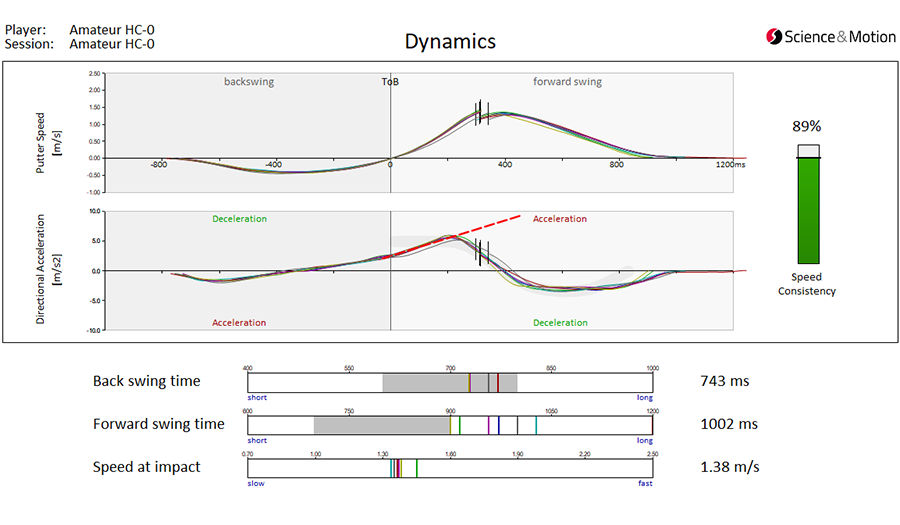

  • Backswing Time
  • Impact Time
  • Forward Swing Time

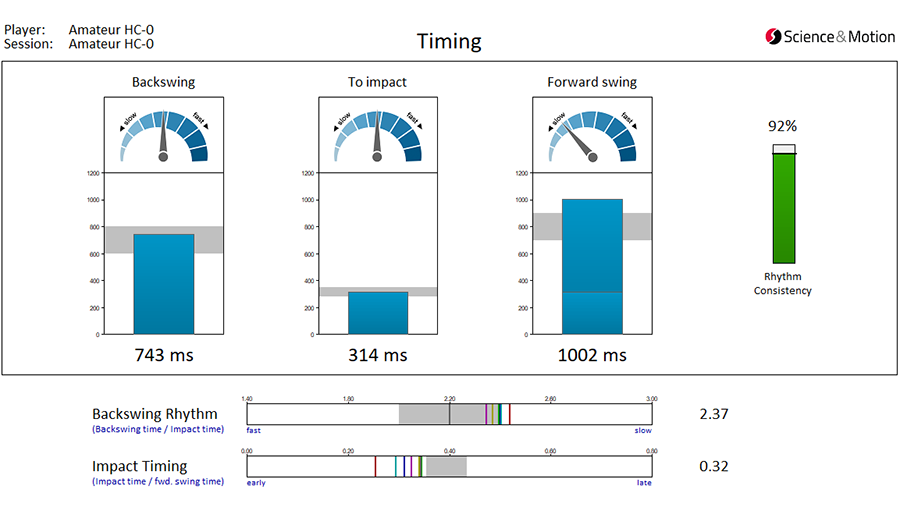

  • Rhythm
  • Timing
  • Speed Impact
  • Acceleration Impact

What the experts say…

“A KEY COMPONENT OF THE COACHING SYSTEM”

“SAM PuttLab is a key component of the coaching system we have in operation at the Home of Golf. It provides clear feedback, positive results and above all it is fun to use.”

STEVE NORTH, Director of Instruction, St Andrews Links Golf Academy

See all SAM Testimonials

Watch a video demonstration of SAM PuttLab by Steve North:

SAM PuttLab Editions



(click to enlarge SAM PuttLab features overview)

* Please note: SAM PuttStation included in Standard Edition for all systems delivered inside USA

The different editions of SAM PuttLab

There are 3 different product editions available for SAM PuttLab: Basic, Standard and Pro.

All editions include 41 parameters for the analysis and training mode, so the training functionality is not restricted at all even in the Basic edition!

New for PuttLab 6 is the Report Builder to design own report pages with custom layouts and individual tiles. The Report Builder allows to combine from a selection of more than 80 tiles in 4 different sizes. The Report Builder module is available in Standard and Pro Edition only!

* Please note: SAM PuttStation included in Standard Edition for all systems delivered inside USA

For more information or pricing requests please use our contact form.

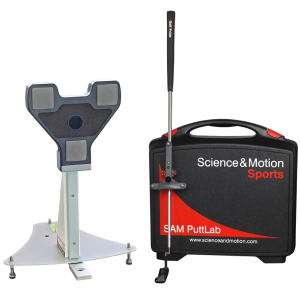

SAM PuttStation

The ideal extension

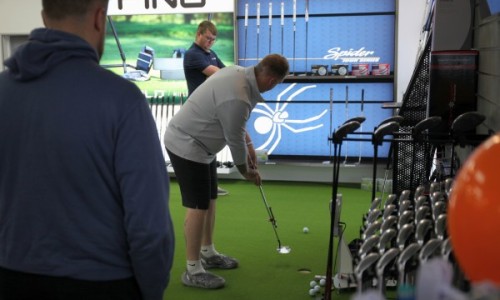

The SAM PuttStation is the ideal extension for PuttLab indoor installations – the perfect tool for studios and academies as well as retail golf shops. The biggest advantage to using the PuttStation with the SAM PuttLab is ease of set up and perfect calibration.

More details…

For further information or purchase enquiries please use our contact form. We will process your request as soon as possible.



SAM PuttLab Technology

  • Additionally you need a Windows PC/ Laptop and optionally a printer
  • Pentium IV with 2 GHz or better
  • 2 GB RAM (4 GB RAM recommended)
  • 500 MB free storage space
  • USB 2.0 or compatible USB 3.0 interface
  • Internet access for software updates recommended
  • Windows 7, 8, 8.1 and 10 (32/64 Bit)



  • BasicUnit (receiver unit)
  • FlexTriplet (wireless sensor)
  • FlexClips (for attaching FlexTriplet to the putter)
  • Tripod
  • USB cable
  • Protective carrying case
  • SAM PuttLab software
  • Comprehensive operating manual (as PDF-file)
  • Quick Start guide
  • Calibration sheet

  • 4 sensor channels
  • Real-time analysis via PC USB interface
  • Measuring frequency 70 Hz
  • 180 degrees radiation angle of the senders
  • Measuring distance up to 1.4 meters
  • resolution of the positional signal about 1/10 mm
  • Size: 240x255x50 mm
  • Weight: 750 g
  • Ultrasound marker 10 x 8 mm



Precision and simplicity

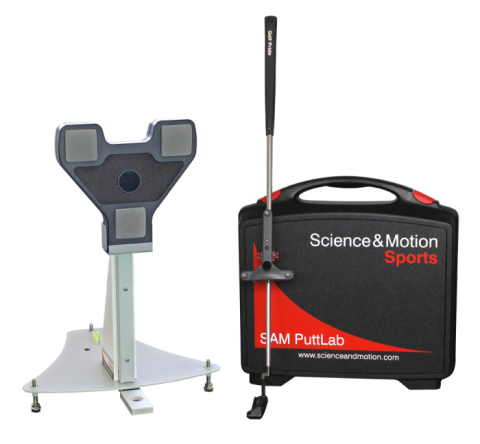

The electronics are completely housed in the compact and durable receiver unit (SAM BaseUnit). The receiver unit is mounted onto a small tripod.

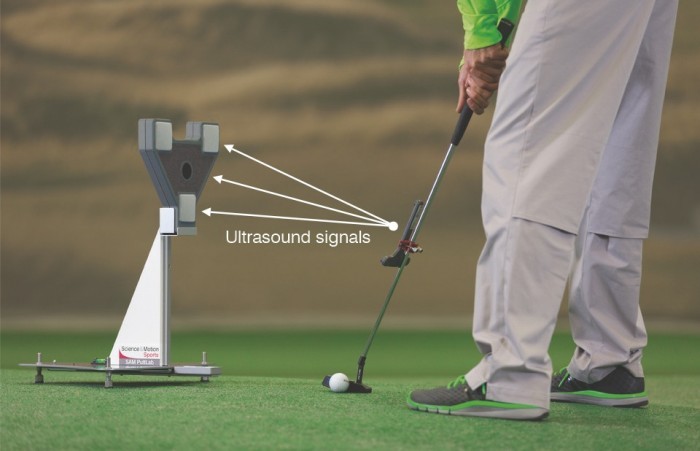

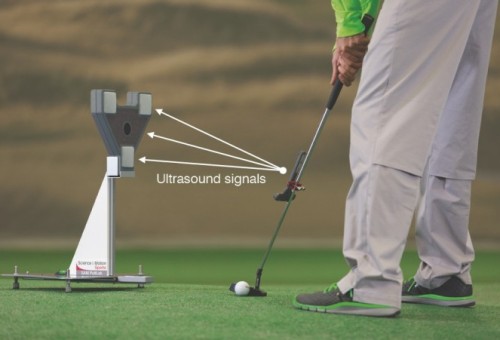

The measuring principle is based on measuring the travel time, which the signals of the three senders on the sensor (Triplet) need to reach the microphones in the measuring unit. These time periods are then used for calculation of the exact positions in space which makes it possible to derive the movement data.

There is no problem using the system outdoors if kept away from moisture or strong winds.

SAM PuttLab versions 5 and 6 allows users to remote control the PC software with the PuttLab App on smartphones or tablet computers

If you want more information send us an Email to sales@scienceandmotion.com or use our contact-form.

Download a free demo version of SAM PuttLab software!

SAM Putting Parameter Tutorials
